Jumpers pour prom sons 8 ball deluxe

  • Auteur de la discussion Auteur de la discussion largo9
  • Date de début Date de début
L

largo9

Non Membre
Salut, je viens d'acheter sur RP les prom sons pour mon 8 ball deluxe que je suis occupé à restaurer...
Il n'avait pas de carte son, j'ai réussi à en avoir une mais ce n'est pas celle d'origine. Comment mettre les jumpers avec ces mémoires?

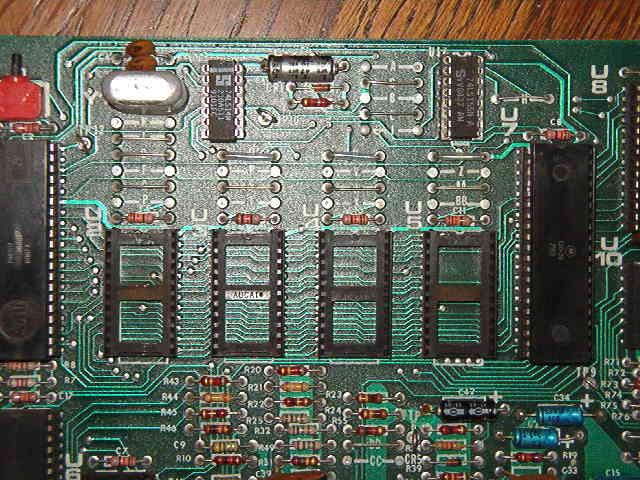

Ci-joint photo de la carte.
Merci pour l'aide


If U1 CPU is a... ...then jumper this way
----------------- -----------------------------------
6802 install K, remove L, remove U6 RAM
6808 install L, remove K, install U6 RAM



-- If any of U2 through U5 are 4K (2532/9332/2732), then install
jumpers C and E, and remove jumpers A and B. If only 2K chips
(2716/9316) are used, then install A and B, and remove C and E.
-- Original schematic has an error in the jumpering notes for
2532/9332: they neglected to list jumper "D" as needed.

If U2 is a... ...then jumper this way
------------- -----------------------------------
9316 ROM or install D and P, remove F and G
2716 EPROM

9332 ROM or install D and G, remove F and P
2532 EPROM

2732 EPROM install F and P, remove D and G



If U3 is a... ...then jumper this way
------------- -----------------------------------
9316 ROM or install Q and T, remove R and S
2716 EPROM

9332 ROM or install Q and S, remove R and T
2532 EPROM

2732 EPROM install R and T, remove Q and S



If U4 is a... ...then jumper this way
------------- -----------------------------------
9316 ROM or install U and X, remove V and W
2716 EPROM

9332 ROM or install U and W, remove V and X
2532 EPROM

2732 EPROM install V and X, remove U and W



If U5 is a... ...then jumper this way
------------- -----------------------------------
9316 ROM or install Y and BB, remove Z and AA
2716 EPROM

9332 ROM or install Y and AA, remove Z and BB
2532 EPROM

2732 EPROM install Z and BB, remove Y and AA



If speech is... ...then jumper this way
--------------- -----------------------------------
Required install J and remove H

Not required install H and remove J



If U12 is... ...then jumper this way
------------ -----------------------------------
Present remove EE jumpers (5 of them)

Not present install EE jumpers (5 of them)



If game is... ...then jumper this way
------------- -----------------------------------
Centaur remove FF (requires AS-2518-61B)

Not Centaur install FF (if using AS-2518-61B)



If volume is... ...then jumper this way
--------------- -----------------------------------
CPU controlled install M and CC, remove N and DD
(this is normal)

Remotely controlled install N and DD, remove M and CC

ça a l air compliqué mais pas plus que ça en fait....

merci pour l'info,
pour u3 u4 et u5 c'est bon... je n'ai rien en J et j'ai en H, je change?
pour le volume j'ai N et DD je fais quoi?

install j and remove h if speech is needed

le 8bd parle donc oui il faut j et enlever h

pour le volume c est bon j ais le meme sur le FG

Tu les as prise en 2532 et 2716 le kit

Soit il faut faire cela et ce uniquement :

838-08_3.532 - U3 for Squawk & Talk, 2532 [D446]
838-09_4.716 - U4 for Squawk & Talk, 2716 [1639]
838-10_5.532 - U5 for Squawk & Talk, 2532 [3365]

AS-2518-61A (S&T) jumpers:
2532: C,E,D,G,Q,S,U,X,Y,AA
